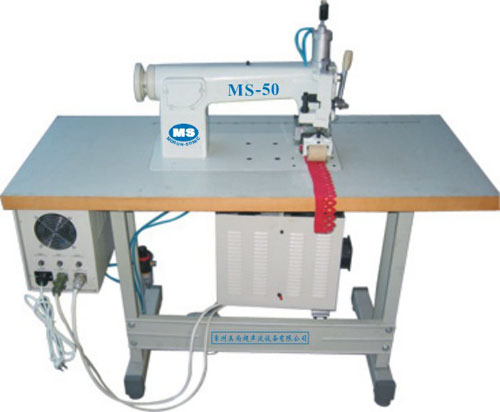

Ultrasonic Lace Machine
Power Supply: 220V±5V 50Hz (60Hz)
Working Frequency: 20KHz
Output Frequency: 1500W
Working Speed: 0-18M/min
Effective Breadth: 50MM
Equipped Pattern Mould: 23MMxØ51MM; 50MMxØ51MM
Materials Suitable: for Hot Fusibility, for example: polyester, nylon, chemical and non-woven fabrics
Packing Size: L (130cm)x W(60cm)x H(126cm)
Total weight: 150 Kg
· The operations of side scraping and trimming
The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
· Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
· Transfer printing
Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
· Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
Press the pattern wheel.
At one time the process of cutting, hole breaking and patter printing can be carried out.
Suitable material :
composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.
